• New,
• PRC Production,
• Power supply: 230 V,
• Frequency: 50/60 Hz,

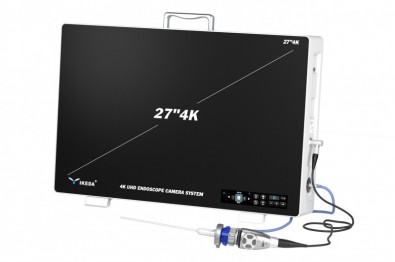

• IKEDA YKD-9127 is a modern, technologically advanced 4K UHD endoscopic camera system, designed for medical applications requiring the highest quality of imaging and operational reliability during diagnostic and surgical procedures,
• The system is equipped with a camera with a SONY CMOS 1/1.8” sensor, which provides an image in UHD resolution of 3840 × 2160 pixels, which translates into exceptional sharpness, high detail and natural color reproduction,
• The YKD-9127 model is equipped with a 27-inch 4K monitor, which allows for comfortable observation of anatomical details during procedures. An integrated 100W LED light source provides even and intense illumination of the treatment area, eliminating the need for additional external light sources.
• The device supports image recording in JPG format and 4K video recording using the H.264 (MPEG-4) codec with a smoothness of up to 60 frames per second,
• Data is recorded via a USB 2.0 interface, allowing for easy archiving of medical records. The system also offers a wide range of output ports, including two HDMI 2.1 ports, DVI, and 3G-SDI, enabling integration with modern operating room infrastructure.
• Specification:
  • Camera head:
    • UHD Imaging: 3840 × 2160 px.,
    • Sensor: SONY CMOS 1/1.8",
    • Waterproof: IPX8,
  • Video system:
    • Image resolution: UHD 3840 × 2160 px.,
    • Horizontal resolution: 1800 TVL,
    • SNR (signal to noise ratio): 50 dB ±20%,
    • Scanning system: Progressive Scanning,
    • White balance: automatic,
  • Monitor:
    • Screen diagonal: 27 inches,
    • Resolution: 4K UHD,
  • Light source:
    • Built-in cold light LED light source,
    • Power: 100 W,
  • Image recording (can be retrofitted for an additional fee):
    • Photo format: JPG 3840 × 2160 px.,
    • Video format: 4K 3840 × 2160 px.,
    • Codec: MPEG-4 (H.264 Codec),
    • Frame rate: 60 fps,
    • Recording interface: USB 2.0,
  • Connectors:
    • 2× HDMI 2.1 (3840 × 2160 px.),
    • 1× DVI,
    • 1× 3G-SDI,
• Possibility to choose menu in: ENG, CHIN, RUS,
• Possibility to expand the system with optional functions for an additional fee,
• It has a current inspection and is ready to work,
• Issued Technical Passport (Service Report) valid for 12 months,
• Guarantee:
  • Warranty period: 24 months for the device,
  • Service: response within 48 hours on weekdays,
  • Telephone consultations with a service engineer are available on weekdays during our business hours,
  • Post-warranty period - we offer software updates and staff training as well as quick service support,
  • Periodic inspections - additionally paid, include checking the technical condition of the device and cables, system diagnostics, filter cleaning and software updates,
• Financing options (Poland only): Installments, Leasing, Loan,
