• New,
• PRC Production,
• Power supply: 230 V,
• Frequency: 50/60 Hz,
• The IKEDA YKD-9101 endoscopic system is a modern medical device designed for diagnostics and endoscopic procedures requiring high image quality and reliable operation,
• It was designed for specialized clinical applications, where precise observation of anatomical structures is crucial. Thanks to Full HD technology and a high-quality SONY CMOS image sensor, the device provides exceptionally clear, detailed, and stable images, significantly improving physician comfort and patient safety.
• The system is equipped with the ability to save Full HD photos and videos directly to a USB drive, allowing for easy archiving of medical records and subsequent analysis. Support for JPG photos and MPEG-4 video recordings (H.264 codec) at 60 frames per second ensures smooth image quality and high recording quality.

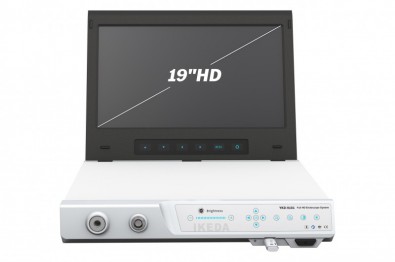

• The YKD-9101 model integrates a 19-inch Full HD monitor, an endoscopic camera head, and an efficient 80 W LED light source into one compact unit. This design allows for convenient use and saves space in the treatment room or operating theater.
• Specification:
  • Camera head:
    • Full HD imaging: 1920 × 1080 px.,
    • Image sensor: 1/2.8” SONY CMOS,
    • Waterproof: IPX8,
    • Mounting standard: Full HD optical coupler C-mount standard,
  • Video system:
    • Image resolution: Full HD 1920 × 1080 px.,
    • Horizontal resolution: ≥1200 TVL (20% tolerance),
    • SNR (signal to noise ratio): 60 dB (20% tolerance),
    • Scanning system: Progressive Scanning,
    • Automatic white balance,
  • Monitor:
    • Screen: 19 inches Full HD,
  • Light source:
    • Built-in LED light source,
    • Power: 80 W,
  • Image recording (can be retrofitted for an additional fee):
    • Photo format: JPG 1920 × 1080 px.,
    • Video format: Full HD 1920 × 1080 px.,
    • Compression: MPEG-4 (H.264 codec),
    • Frame rate: 60 fps,
    • Connection: USB,
  • Standard connectors:
    • DVI,
    • HDMI,
    • CVBS,
• Possibility to select menu in: ENG, CHIN, JP, KOR, RUS, ESP,
• Possibility to expand the system with optional functions for an additional fee,
• It has a current inspection and is ready to work,
• Issued Technical Passport (Service Report) valid for 12 months,
  • Guarantee:
  • Warranty period: 24 months for the device,
  • Service: response within 48 hours on weekdays,
  • Telephone consultations with a service engineer are available on weekdays during our business hours,
  • Post-warranty period - we offer software updates and staff training as well as quick service support,
  • Periodic inspections - additionally paid, include checking the technical condition of the device and cables, system diagnostics, filter cleaning and software updates,
• Financing options (Poland only): Installments, Leasing, Loan,
