• New,
• PRC Production,
• Power supply: 230 V,
• Frequency: 50/60 Hz,

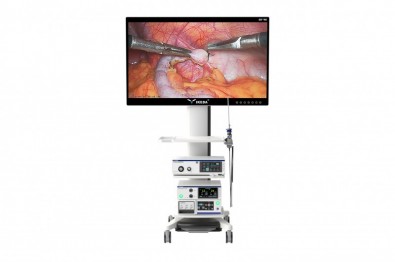

• The IKEDA YKD-9210 is an advanced 4K Ultra HD medical imaging system designed for the highest precision during surgical procedures (including laparoscopy, hysteroscopy, and arthroscopy). The system features an all-in-one design, integrating an image processor and a powerful LED light source into a single unit.
• The key element is the camera head equipped with a SONY CMOS sensor, which provides an image resolution of 3840 x 2160 pixels while maintaining natural colors and high image dynamics. Intuitive operation is provided by a 7-inch touchscreen located on the front panel of the processor, allowing for quick parameter changes and selection of surgical presets.
• The endoscopic system is standardly equipped with:
  • Control Unit (Processor) and Imaging YKD-9210:
    • Output resolution: UHD 3840 x 2160 pixels,
    • Image sensor: 1/2.5 inch SONY CMOS,
    • Horizontal resolution: 1800 TV lines (TVL),
    • Video outputs: 1x HDMI 2.0 (4K), 1x DVI, 1x 3G-SDI.,
    • Control panel: 7-inch integrated LCD touchscreen,
    • Scanning: Progressive Scanning,
    • Signal-to-noise ratio (SNR): 50 dB,
    • Image functions: Automatic white balance, image freezing (Freeze), digital zoom (In/Out), structure and color enhancement,
    • Presets: 5 dedicated user settings (e.g. Laparoscopy, Hysteroscopy, ENT, Arthroscopy, Fiberoscopy),
  • Integrated light source with processor:
    • Type: Cold LED light source,
    • Power: 100W,
    • Characteristics: High brightness, low heat emission, long diode life,
  • Camera head:
    • Water resistance class: IPX8 (full disinfection possible in immersion),
    • Mounting: Universal C-mount thread,
    • Control buttons: Programmable buttons on the head (white balance, photo, recording, zoom),
  • Imaging:
    • 4K Medical Monitor: 32 inches UHD,
    • Possibility of retrofitting with a 4K 55-inch UHD medical monitor (anti-reflective / fully laminated) for an additional fee,
  • Instrumentation placed on the YKD-2100 mobile endoscopic trolley,
• Possibility to choose menu in: ENG, CHINA,
• Possibility of retrofitting with optional equipment for an additional fee,
• It has a current inspection and is ready to work,
• Issued Technical Passport (Service Report) valid for 12 months,
• Guarantee:
  • Warranty period: 24 months for the device,
  • Service: response within 48 hours on weekdays,
  • Telephone consultations with a service engineer are available on weekdays during our business hours,
  • Post-warranty period - we offer software updates and staff training as well as quick service support,
  • Periodic inspections - additionally paid, include checking the technical condition of the device and cables, system diagnostics, filter cleaning and software updates,
• Financing options (Poland only): Installments, Leasing, Loan,
