• New,
• PRC Production,
• Power supply: 230 V,
• Emergency power supply: via new built-in batteries,
• Frequency: 50/60 Hz,

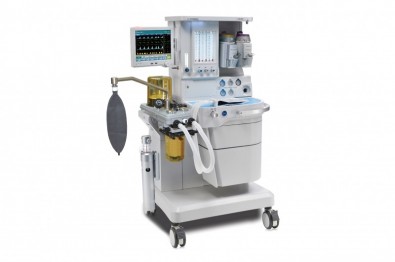

• The COMEN AX-600 is a modern, high-performance anesthesia device designed for use with adult, pediatric, and neonatal patients. It combines advanced ventilation technology with an ergonomic design.
• Ergonomics and Construction:
  • Workspace: Foldable tabletop measuring 47.2 x 24.8 cm with integrated lighting for easier work,
  • Storage: Spacious drawers for accessories and a dedicated space for gas cylinders,
  • Mobility: The device is on four wheels with a foot brake (standard) or an optional central locking system; equipped with ergonomic handles,
  • Respiratory system: Compact patient system with optional Active Anesthetic Gas Scavenging System (AGSS),
• Ventilation and Medical Gases:
  • Respirator: Integrated, electronically controlled and pneumatically driven,
  • Gas supply: O2 (standard), N2O and Air (optional),
  • Evaporators: Equipped with two ports for evaporators (evaporators not included - can be retrofitted),
• Standard specifications:
  • 12.1-inch touchscreen,
  • Footbrake,
  • Mechanical flow meter (adjustable in the range of 0–10 l/min),
  • Ventilation modes: VCV / PCV / manual,
  • Gas source and main flow meter: oxygen, N2O and air,
  • Propellant gas: oxygen,
  • Double evaporator support,
  • Respiratory system heater,
  • Waveforms: Respiration time / Flow time / Volume time / EtCO2 / EEG,
  • Possibility of retrofitting for an additional fee:
    • Ventilation modes: SIMV-VC / SIMV-PC / CPAP/PSV / PRVC / SIMV-PRVC / PSVPro
    • Support for spare gas cylinder: oxygen single, oxygen-air or oxygen-N2O,
    • Propellant: air,
    • AGSS,
    • External vacuum suction system,
    • Respiratory system heater,
    • Bypass,
    • Auxiliary oxygen flow meter,
    • Oxygen sensor,
    • Central brake,
    • ACGO,
• Monitoring and interface:
  • Screen: Large, 12.1” color TFT display (resolution 800 x 600 pixels),
  • Operation: Intuitive navigation via touchscreen, knob and buttons,
  • Parameter measurements: Tidal volume (TV), minute volume (MV), RR rate, pressures (Ppeak, Pplat, PEEP), airway resistance and lung compliance,
  • Extended options: Possibility to measure the concentration of anesthetic gases (AG), ETCO2 and present the loop in real time,
  • Security: Advanced audible and visual alarms,
• Possibility of retrofitting with the AGSS system (optional),
• Possibility to choose menu in: PL, GER, ENG, ESP, PT, IT, HUN, CS, RUM, SER, TUR, UA, CHIN, RUS,
• No evaporator included (can be retrofitted for an additional fee),
• Possibility to equip the camera with selected accessories for an additional fee,
• Dimensions: 80 x 69 x 140 cm,
• Weight: 125 KG,
• It has a current inspection and is ready to work,
• Issued Technical Passport (Service Report) valid for 12 months,
• Guarantee:
  • Warranty period: 24 months for the device,
  • Service: response within 48 hours on weekdays,
  • Telephone consultations with access to a service engineer on weekdays during our company's working hours,
  • Post-warranty period - we offer software updates and staff training as well as quick service support,
  • Periodic inspections - additionally paid, include checking the technical condition of the device and cables, system diagnostics, filter cleaning and software updates,
  • Possibility of extending the warranty for an additional fee up to 3 years for the domestic and international market (each year 10% of the device value),
  • The price of the device includes delivery, installation of the equipment and training,
  • In the domestic market (Poland), if the device is installed within 30 days from the date of delivery of the equipment, the installation and training are free of charge, after exceeding this deadline these services will be charged,
• Financing options (Poland only): Installments, Leasing, Loan,
