• Used,
• Technical condition: very good,
• Visual condition: good,
• Polish production,
• Power supply: 230 V,
• Emergency power supply: via 1 new built-in battery 9.6 V 1 Ah,
• Frequency: 50/60 Hz,
• Power: 10 VA,

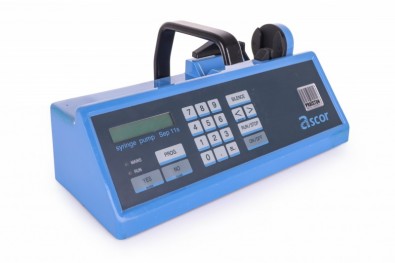

• The Ascor Sep 11S is a syringe-based, single-channel infusion pump designed for precise dosing of infusion fluids and medications,
• Product features:
  • The constant movement of the syringe is ensured by a steel screw driven by a stepper motor controlled by a microprocessor,
  • The device is compatible with many types of disposable syringes,
  • Supported syringes:
    • 10 mL – B. BRAUN OMNIFIX, BOGMARK, CODAN/ONCE, ERG, MONOJECT, TERUMO,
    • 20 ml - B. BRAUN OMNIFIX, B. BRAUN PERFUSOR, BD PLASTIPAK, BOGMARK, CODAN/ONCE, ERG, MONOJECT, POLFA LUBLIN, SHAN CHUAN,
    • 30 mL - B. BRAUN OMNIFIX, BD PLASTIPAK, CODAN/ONCE, MONOJECT, TERUMO,
    • 50 mL - BD PERFUSION, BD PLASTIPAK, B. BRAUN ADALAT, B. BRAUN OMNIFIX, B. BRAUN PERFUSOR, B. BRAUN PROINJECT, CODAN/ONCE, DISPOMED, ​​DISPOMED-P, DISPOMED PL, INJECTOMAT, IVAC, JANPOL, MONOJECT, POLFA BOLESLAWIEC, POLFA LUBLIN, SHAN CHUAN, TERUMO,
    • 50/60 mL - DISPOMED, ​​INJECTOMAT, ONCE PERF., POLFA BOL.,
    • 60 ml - PENTA,
  • Software version: 2.543,
  • The BOLUS function enables multiple, rapid injections of initial bolus doses of a precisely defined volume at any time during the infusion,
  • A specially built-in program performs self-tests after the pump is turned on, checking each component and function for signs of failure,
  • Constant monitoring of the processor using a watchdog system,
  • Visual and audible alarms with mute option,
  • The built-in battery ensures uninterrupted operation of the pump in the event of a power outage or patient transport,
  • The housing without protruding knobs and buttons on the front panel facilitates maintenance and disinfection,
  • Possibility to adjust the screen backlight,
  • 2.5" LCD display
  • Control panels are easy to keep clean thanks to lamination,
  • Keyboard on the control panel in English,
• Specification:
  • Basic infusion rates for a syringe volume:
    • 50/60ml: 0.1 - 500ml / h,
    • 30ml: 0.1 - 300ml / h,
    • 20ml: 0.1 - 250ml / h,
    • 10ml: 0.2 - 150ml / h,
  • Maximum bolus dosing speed:
    • 1000 ml / h for a 50 ml syringe,
    • 600 ml / h for a 30 ml syringe,
    • 500 ml / h for a 20 ml syringe,
    • 300 ml / h for a 10 ml syringe,
  • Infusion volume range: 0.1 - 999 ml,
  • KVO maintenance dose: 0 - 5 ml / h,
  • Infusion time range: 1 min - 99 h 59 min 59 s (in one-minute steps),
  • Infusion accuracy: 3% or 6 ml,
  • Occlusion pressure:
    • Low: 450 mm Hg ± 150 mm Hg,
    • Average: 675 mm Hg ± 150 mm Hg,
    • High: 900 mm Hg ± 200 mm Hg,
  • Display:
    • 16-character alphanumeric LCD,
    • Matrix: 5 x 7 points,
• Included in the set:
  • Hanging bracket,
  • Bracket with clamping screw for mounting on a rail, e.g. tripod or bed,
  • User manual in English (PDF),
  • Power cord,
• Overall dimensions: 30 x 15 x 20 cm,
• Weight: 3.1 kg,
• Has a valid Technical Passport issued,
• Guarantee:
  • 6 months for the domestic market - Poland,
  • 1 month for international market,
• Financing options (Poland only): Installments, Leasing, Loan,
