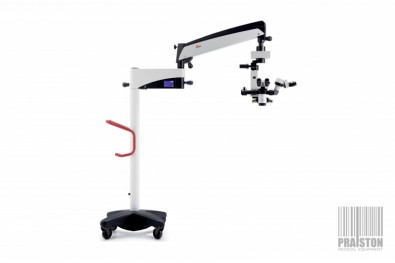

The LEICA M620F20 is a high-quality ophthalmic microscope with a large depth of field. Its advantages include comfortable operation, a high-quality light source, and, above all, excellent optics.
Electrically controlled microscope functions:
Smooth adjustment of magnification (zoom) and focus (focus) using the foot controller and control panel,
Adjusting the focusing and zoom speed,
Control unit with LCD display, allowing you to save configuration settings for several users,
Specification:
Total microscope magnifications:
Doctor: from 3x.9 to 23.2x,
Assistant: from 3.1x to 18.8x,
Doctor's glasses magnification: x12.5
Assistant eyepiece magnification: 10x,
Doctor's view with adjustable angle: from 5° to 25°,
Assist preview with fixed tilt angle: 45°,
Lens focal length f=200 mm. APO,
Head tilt mechanism: 5° / -5°
XY module reset function - return to the initial position,
Focus module reset function - return to the initial position,
IR protection filter,
UV protection filter: KV420,
A module with a spare bulb built into the microscope head,
Included in the set:
Wireless 12-function foot controller,
VIDEO recorder,
Set of handles (3 pcs.)
Dimensions:
Total height:
Minimum: 190 cm,
Maximum: 222 cm,
Lens distance from ground:
Minimum: 78 cm,
Maximum: 138 cm,
Maximum distance from the lens to the column: 137 cm,
Base: 61 x 61 cm,
Weight: 210 KG,
It has a current inspection and is ready to work,
Issued Technical Passport (Service Report) valid for 12 months,
Guarantee:
6 months for the domestic market (Poland),
3 months to the international market,
Possibility of extending the warranty for an additional fee up to 12 months for the domestic and international markets,
The warranty period does not cover light bulbs and other light sources installed in the device,
